King Air Regal Pleated Window Shades
Part Number: 32-0438K

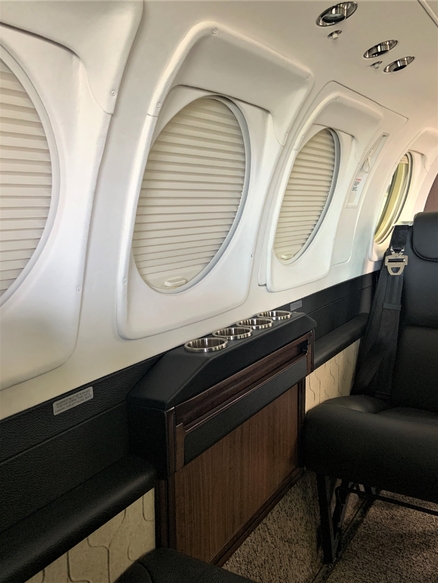

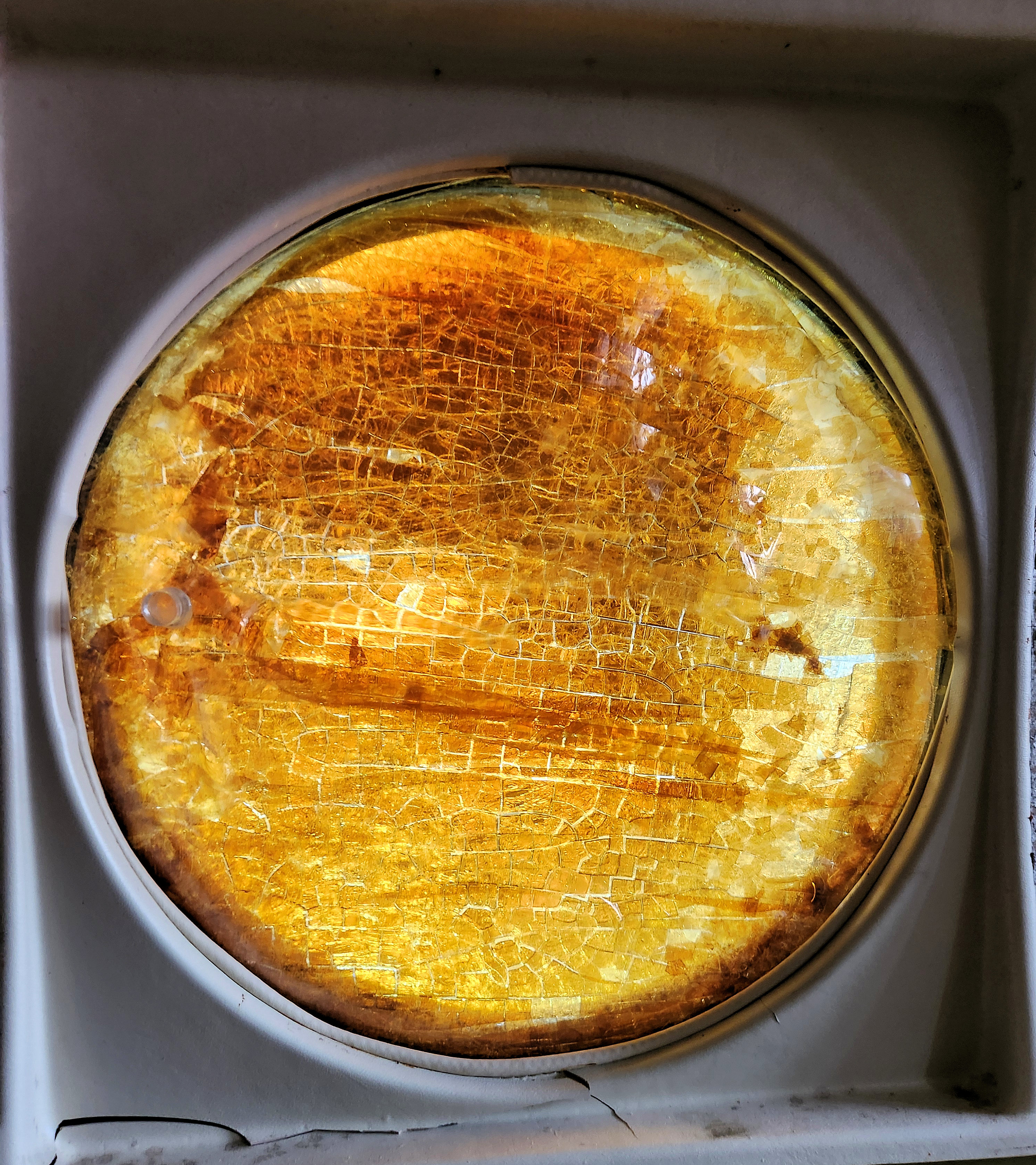

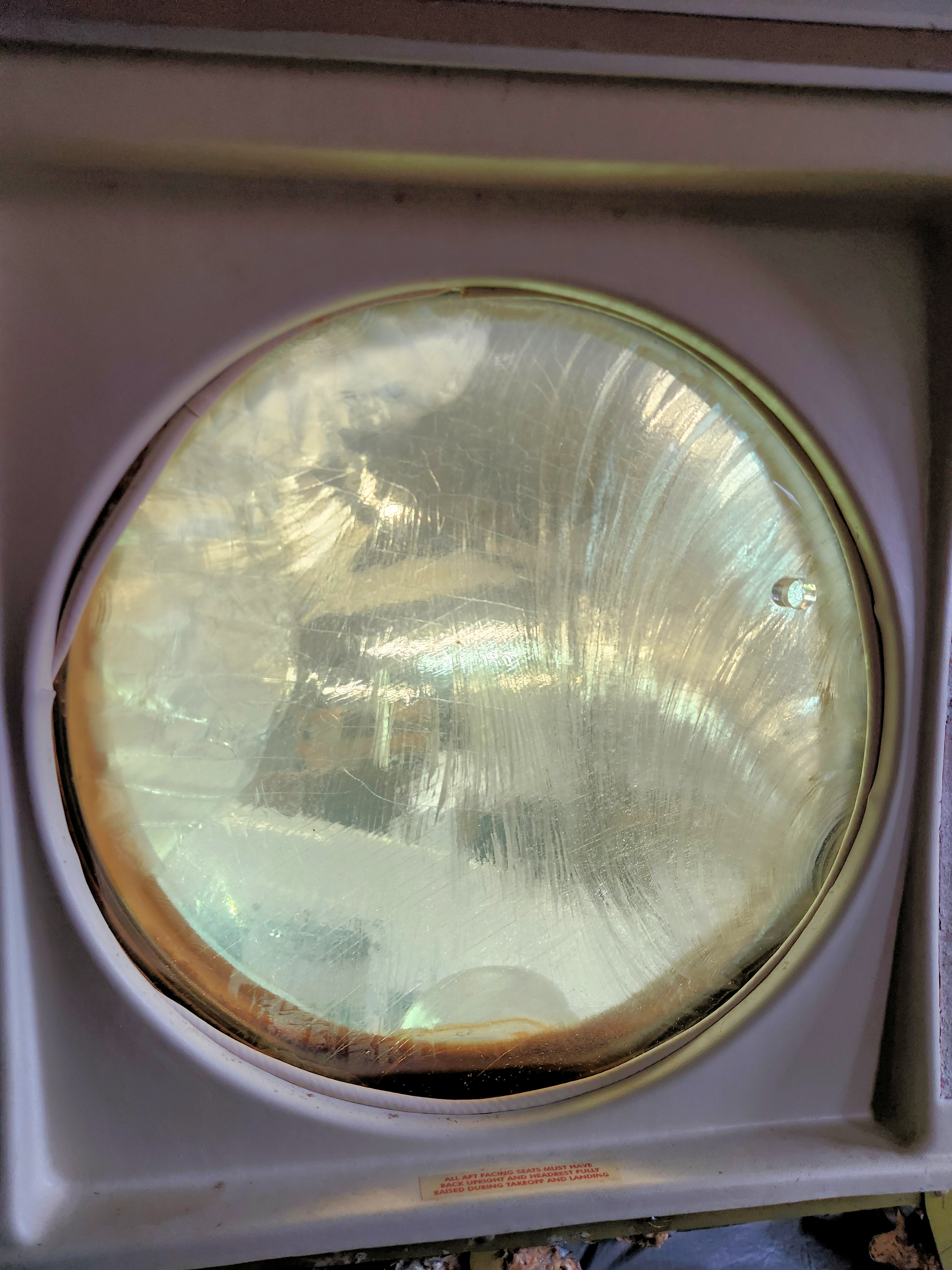

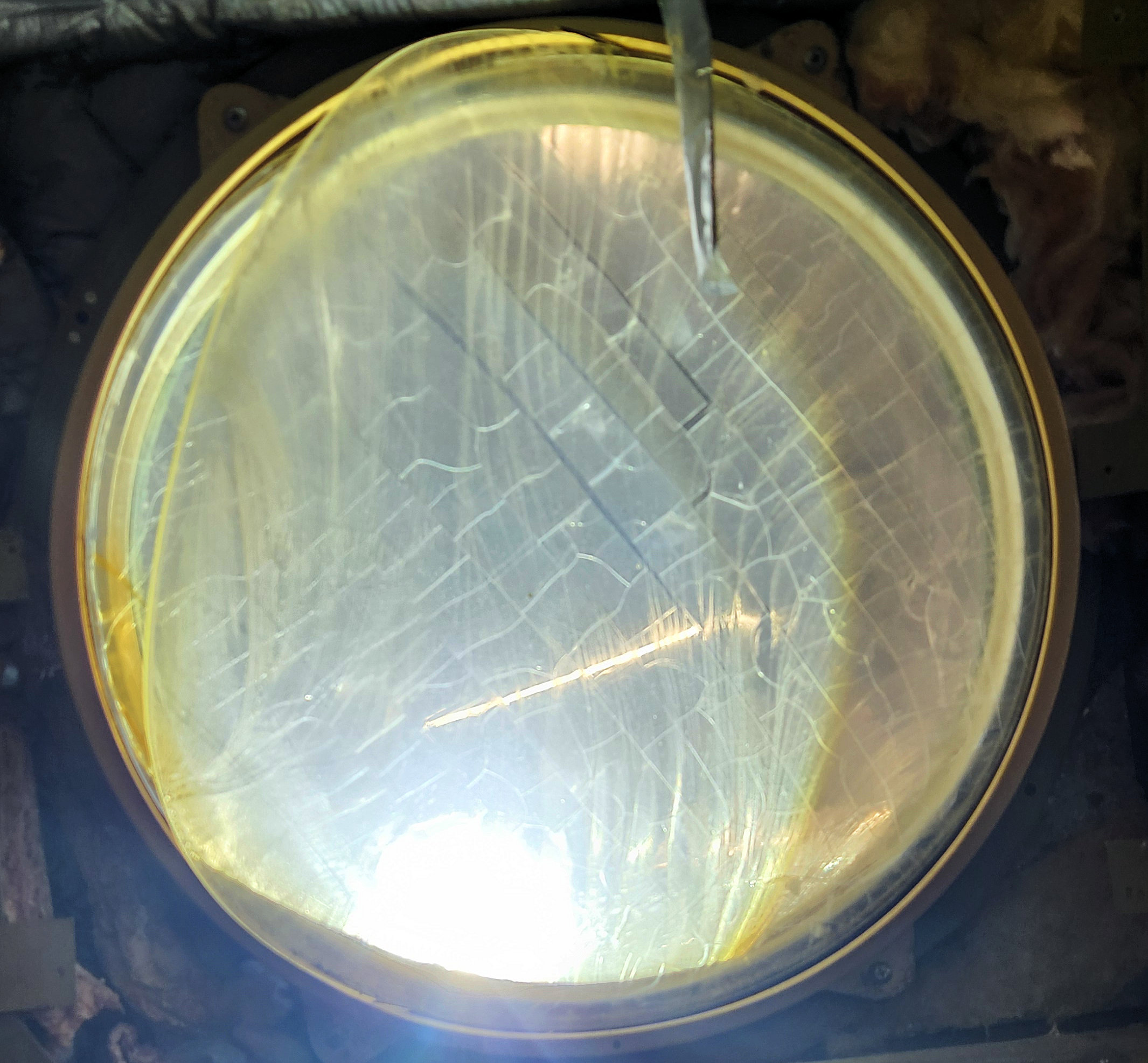

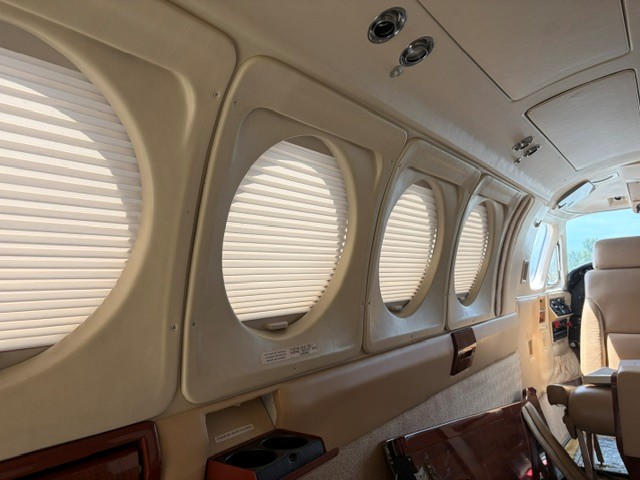

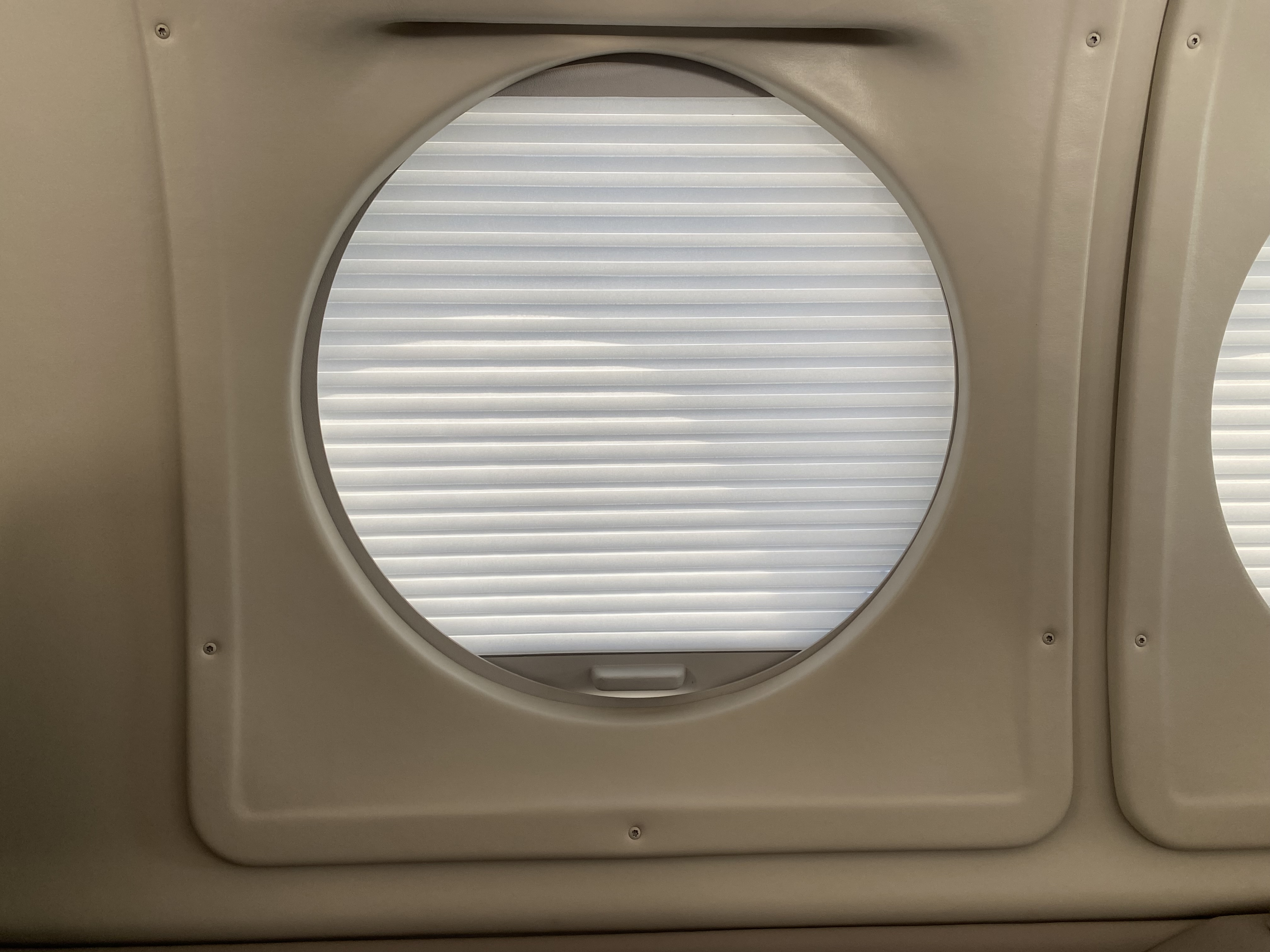

Update your King Air 90 & 200 with AvFab’s STC approved “Regal” Pleated Window Shades and replace the OEM Polarizers. The factory Polarizers must be left in the open (clear) position on the ramp which allows full sunlight into the cabin. AvFab’s “Regal” Pleated Window Shades can be left closed, dramatically lowering cabin temps while your King Air is parked. They give your King Air the contemporary look the jets have and come with a full 24-month warranty.
COMING SOON… Regal Shades for 300/350 series King Airs! FAA approval expected 2nd quarter 2019. Contact us for details!
- King Air: 90, C90, C90A, C90GT, C90GTx, E90, F90, 200, 200CT, B200GT, B200
Regal Window shades will not only increase your King Air’s resale value, but it will spend fewer days on the market.
These are available in four colors— tan, gray, olive and limestone. Free color samples are available.
Kit includes everything necessary to convert an aircraft from Polarizers to the AvFab “Regal” window shades. Total weight is 2.2 pounds per window. Shade installation may interfere with the indirect lighting fixture locations in 1979 and earlier aircraft, if the window light fixtures are mounted to the airframe rather than the window line panel. When the fixtures are mounted to the airframe, they must be removed and replaced by LED lighting kits installed with Velcro on the window panel like the later King Airs. See pwi-e.com/king-air-led-lights/ for more information on LED lighting options. Installation time for KA200 ship set of shades (11) is approximately 24 hours, and approximately 18-20 hours for a ship set in a KA90 series (7 shades), depending on the experience of the technician.
FAA STC and PMA eliminating the need for field approval. For 300 series see AvFab P/N 32-0517K
- Brazil 2018S06-09
- Canada M5012-38-SA1672WI
- EASA 10061033 (200 only)
Window shades are typically shipped within 1 week after receipt of order. Shipping weight and dimensions are 5 lbs., 20×19×6.
